PORTABLE MULTI-GAS DETECTOR
RBR-4x
Four-gas portable detector for O2, CO, LEL and H2S with color display and data logging
Compact, rugged and simple to operate, built for reliable detection in demanding environments.
- 4 gases O2 · CO · LEL · H2S
- Ex d IIC T3 Explosion-proof · CE
- Up to 10 h Continuous operation
OVERVIEW
Four gases, one compact instrument
The RBR-4x portable multi-gas detector is a compact, high-performance instrument designed to monitor concentrations of oxygen (O2), carbon monoxide (CO), combustible gases (LEL) and hydrogen sulfide (H2S).
Operation is simple and intuitive through a four-button interface, allowing quick and efficient use in the field. Its color LCD display provides clear and immediate identification of each detected gas, while built-in data logging records up to 9,600 data points that can be downloaded to a PC via USB.
The rugged, water-resistant housing ensures reliable performance in demanding environments, and its high-sensitivity sensors — powered by City Technology (a Honeywell company) and Alphasense sensor technology — deliver accurate, dependable detection even under challenging conditions.
- Oxygen (O2)
- Carbon monoxide (CO)
- Combustible gases (LEL)
- Hydrogen sulfide (H2S)
GAS CONFIGURATION
Sensor specifications
| Sensor | Range | Resolution | Response time |
|---|---|---|---|
| Oxygen (O2) | 0 – 30% vol | 0.1% vol | T90 < 15 s |
| Carbon monoxide (CO) | 0 – 1999 ppm | 1 ppm | T90 < 25 s |
| Combustible gases (CH4/LEL) | 0 – 100% LEL | 0.1% LEL | T90 < 20 s |
| Hydrogen sulfide (H2S) | 0 – 200 ppm | 0.1 ppm | T90 < 30 s |
TECHNICAL SPECIFICATIONS
Specifications
| Battery type | Rechargeable 3.7 V lithium battery |
| Battery life | Up to 10 hours (continuous operation) |
| Data download interface | USB |
| Display | Color LCD |
| Storage capacity | Up to 9,600 data points, downloadable to a PC |
| Audible alarm | 90 dB |
| Alarm type | Audible and visual |
| Operating temperature | −20 °C to +50 °C |
| Relative humidity | 15% – 95% (non-condensing) |
| Explosion-proof rating | Ex d IIC T3 |
| Detection method | Diffusion |
| Housing | ABS with anti-slip silicone |
| Weight | 500 g including charger |
| Certification | CE marked |
CALIBRATION AND USE
- Calibration is recommended after 6–12 months of use.
- Calibration must be performed by qualified personnel only.
- It is the user’s responsibility to determine the suitability of this device for the intended application.
- Neither the manufacturer nor the seller shall be liable for any personal injury, loss or property damage resulting from improper use of this device.
Ex d IIC T3
Explosion-proof · CE marked
FEATURES
Built for the field

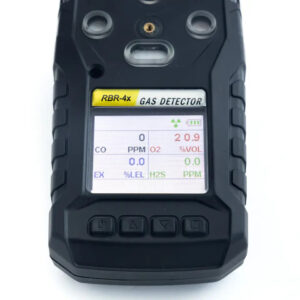

Color LCD Display
- Clear, immediate identification of each gas
- All four readings on one screen
- Battery status always visible

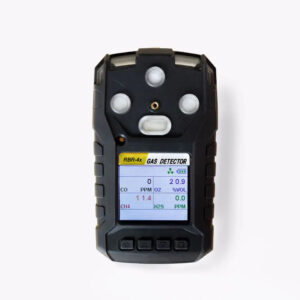

Four-Button Interface
- Simple, intuitive operation
- Quick and efficient use in the field
- Audible (90 dB) and visual alarm
Rugged Housing
- ABS with anti-slip silicone
- Water-resistant design
- Ex d IIC T3 explosion-proof rating
